EM-MBD41003

Dual Band Duplexed
Antenna Kit w/GPS
108-174 MHz / 380-870 MHz

EM-MBD41003

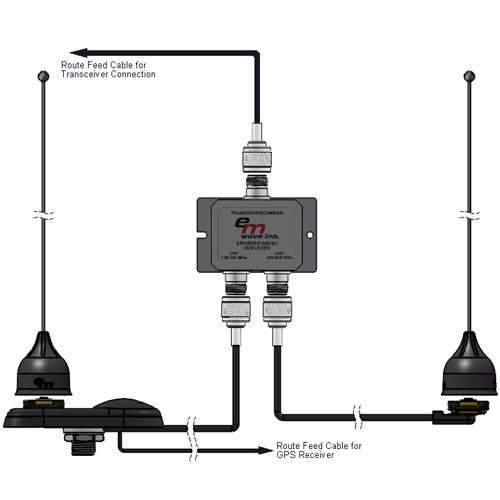

Kit Includes (no substitutions):

  • Duplexer (VHF/UHF-870 MHz)
  • N (m) Connectors (3 ea.)
  • Low Loss 195 NMO Cable (1 ea.)
  • RG-58/U NMO Cable (1 ea.)
  • Field Tunable Antennas EM-MX0108-FT (2 ea.)
  • Installation Instructions

Features

  • Optimal in-band performance with precision 50 ohm impedance and low insertion loss.
  • Expandable from Dual Band to full Tri-Band coverage for ALL LMR/Public Safety Bands, VHF through 870 MHz.
  • Scalable to meet system performance requirements for Frequency, Bandwidth, VSWR, Gain
  • Upgrades/Interchangeability -
    Accommodates user/installer preference for 1/4 wave, 1/2 wave, Dual Element Collinear and GPI antennas without compromising required system gain.
  • Model EM-MG11006-SP NMO/GPS Combination Mount included for VHF/GPS band antenna installation.
    (Reference Model EM-MG11006-SP for GPS Performance Specifications.)

Price: $284.00

Dealers - CALL for reseller pricing: 1-800-654-9550


Technical Specifications

Electrical

  • Frequency Band (VHF): 100-180 MHz
  • Frequency Band (UHF): 380-870 MHz
  • VSWR (all ports): ≤1.6:1
  • Impedance: 50 Ohms
  • Isolation (VHF-UHF-870) ≥50 dB
  • Insertion Loss:
    ≤0.2 dB (100-180 MHz)
    ≤0.3 dB (380-520 MHz)
    ≤0.5 dB (746-870 MHz)
  • Power Rating:
    150W (100-180 MHz)
    100W (380-520 MHz)
    75W (746-870 MHz)
  • Polarization: Linear, Vertical
  • E-Plane: 35 Degrees, Nominal
  • H-Plane: Omnidirectional

Mechanical

  • Dimensions (Duplexer): 3.27 x 2.1 x 1.1 in. (83 x 53 x 28mm)
  • Connectors (All): Type N
  • Feed/NMO Cable Length: 17 ft. (5.1m) each
  • Duplexer Mounting: Interior Only, #8 PHMS (2 ea. sold separately)
  • Antenna Mounting: 3/4 in. Thru-Hole NMO Mounts
  • Antenna Height /Type: Frequency Adjustable/Field Tunable 1/4 Wave
  • Operating Temperature: -40° to 85° C
Transceiver Feed Cable Connector sold separately
Antenna Upgrades sold separately
