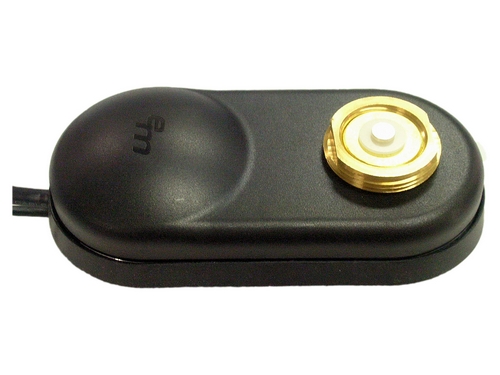

EM-MG11006-SP
NMO Combination
Roof Mount GPS Antenna
Features
- Low-Profile aesthetics for minimal visibility and high pressure car wash survivability
- UV Stabilized, High Impact Xenoy™ housing
- Tightly wound phasing coil delivers flexibility while resisting low hanging obstructions
- Rugged aluminum die cast base for high strength mechanical mounting and reliability
- Silicone Rubber gasket and dual O-ring seals for waterproof installation
Price: $110.00
Dealers - CALL for reseller pricing: 1-800-654-9550
Technical Specifications
NMO Mount Electrical Specifications
- Frequency Band: 30 – 1000 MHz
- VSWR: 1.5:1 typical
- Impedance: 50 Ohms
- Cable Insertion Loss: 2 dB, max
GPS (L1) LNA and Filter Specifications
- Frequency Bandwidth (L1): 1575.42 ± 3 MHz
- Input / Output VSWR: 2.0:1 max
- Impedance: 50 Ohms
- Gain: 28 dB typical
- Noise Figure (dB): 1.5 typical, 2.0 max
- Operational Voltage (Vdc): 3.0 - 5.5 V
- Current Drain (ldc) : 7.0 - 15.5 mA
- Filter Type: SAW
- Filter Attenuation L1 ±50 MHz: 30 dB min
- Power Handling, Input: 10 W
Passive Element: - Center Frequency Band: 1575.42 MHz
- Antenna VSWR: 1.5:1 max
- Impedance: 50 Ohms
- Polarization: RHCP
- Height: 0.88 in. ( 22.4 mm)
- Width: 2.2 in. (55.9 mm)
- Length: 4.5 in. (114.3 mm)
- Mounting Application: Bulkhead, 3/4 inch Thru-Hole
- Cable NMO*: RG-58/U; 17 ft. (5.1 m)
- Cable GPS: RG-174/U; 17 ft. (5.1 m)
- Connector NMO: Sold Separately
- Connector GPS: SMA Plug
- Color: Black
- GPS Radiator: Ceramic, Silver
- Operating Temperature: -40° to 85° C
- Corrosion: Salt Fog
- Humidity: 90%
