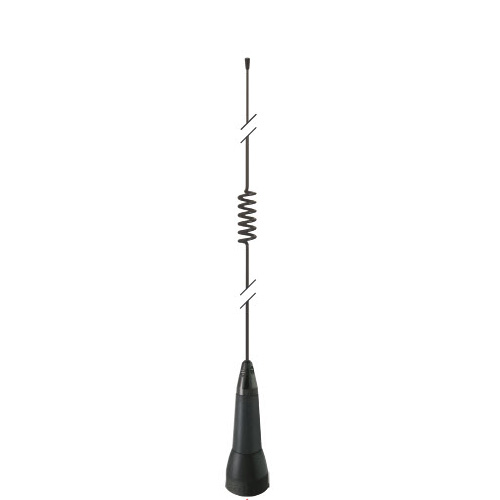

e/m-Flex EMFLX-M10007
Poly Spring UHF 5dB Gain Roof Mount Antenna
420-470 MHz
Features
- NMO Mount, Black Chrome Finish
- Flexible Elastomeric Polymer Housing Resists High Speed Impact and Damage from low hanging obstructions
- One-piece 17-7 SS Open Coil Whip for Reliability & Performance
- Flexible Black Polymer Alloy Spring
- Durable Xenoy™ Base w/ TPV over mold Dust Seal and Grip Ring
- O-ring Seals for Waterproof Construction
Price: $62.50
Dealers - CALL for reseller pricing: 1-800-654-9550
Technical Specifications
Electrical
- Frequency Band: 420-470 MHz (Tunable Range)
- VSWR: <1.5:1
- Impedance: 50 Ohms
- Gain: 5 dB
- Power Rating: 150 W
- Polarization: Linear, Vertical
- E-Plane: 35 Degrees, Nominal
- H-Plane: Omnidirectional
Mechanical
- Overall length - 420 MHz 38 3/8 in. (975 mm)
- Whip Material, Finish: 17-7 SS, Black Chrome
- Spring Material: Black Molded Polymer Alloy
- Base Material: Xenoy™ w/TPV Over Mold Grip
- Mounting Application: 3/4 inch Thru-Hole NMO Mount
- NMO Cable Assembly & Connector: Sold Separately
- Operating Temperature: -40° to 85° C
- Corrosion: Salt Fog
- Humidity: 90%
