Cimarron Technologies AH-5

Encoder for MDC-1200 or GE-STAR PTT ANI, Emergency and Man-Down messages

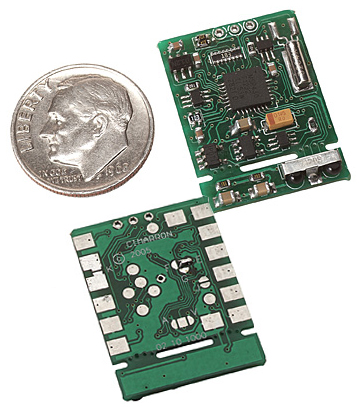

AH-5 ANI encoder


  • Rapid ID-repeat mode
  • Dual ID-Capable
  • Zero-second attack delay for fast decode
  • Supported by our KY104/KY105/KY405/KY450 Radios
  • Very low power consumption
  • Comes with an all inclusive kit for installation,
    Factory installation available
  • Separate MANDOWN and EMERGENCY inputs
  • Trunked or Conventional system compatible
  • rogrammable with a low-cost serial cable (CIM-CABLE)
    or a handheld Infared programming device (CIM-IRP)
  • 3-year warranty

Price: $99

Dealers - CALL for reseller pricing: 1-800-654-9550

Technical Specifications

GE Star® MDC-1200®
Modulation Type PSK (Phase Shift Key) FSK
Rate 400 bps on 1600hz carrier 1200/1800 Hz
ID Locations ANI at Beginning, End or Both
Messages PTT ANI, Emergency, Man-Down, TOT.
Programmable to any allowable GE Star message.
PTT ANI, Emergency.
Programmable to any allowable MDC message
bit pattern.
Sidetone 3.3VPP Square wave audible tones. Time Out Timer Notification Tone: 515 Hz
Emergency and Man Down Warnings: 400 Hz
Go-Ahead Tone: 1.4 Hz
Courtesy Tone: 650 Hz
Burst Length 280mS plus preamble time. Fixed length 180mS
Preamble Length 16/24/32/40/48/56 bits. (Each bit adds 2.5mS) Fixed length
Attack Delay 0 mS to 1000 mS programmable in 10 mS steps.
ANI Repeat Timer (Time since last PTT press. If less, don't send ANI)
Programmable 0 S (Send every PTT); 0 to 255 S.
Supply Voltage 3.3 to 3.6 VDC regulated or 4.0 to 16.5 VDC unregulated
Supply Current 5 mA constant.
Operating Temperature -30°C to +60°C.
Humidity 0% to 95% RH (non-condensing).
Dimensions 17mm x 18mm x 2.0mm(without IR Programmer Tab)
