EM-MBD41002
Dual Band Duplexed
Antenna Kit
108-174 MHz / 380-870 MHz

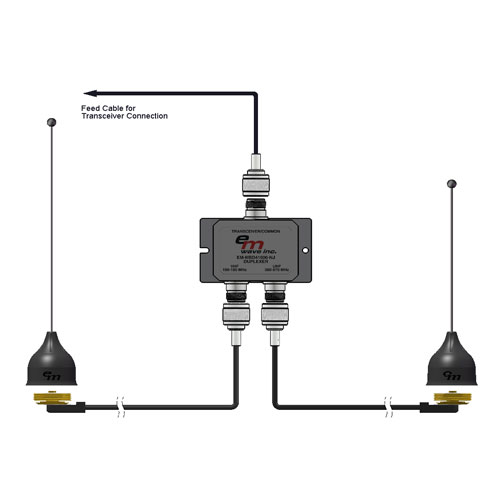

Kit Includes
- Duplexer (VHF/UHF-870 MHz)
- N (m) Connectors (3 ea.)
- Low Loss 195 NMO Cable (1 ea.)
- RG-58/U NMO Cable (1 ea.)
- Field Tunable Antennas EM-MX0108-FT (2 ea.)
- Installation Instructions
Features
- Optimal in-band performance with precision 50 ohm impedance and low insertion loss.
- Expandable from Dual Band to full Tri-Band coverage for ALL LMR/Public Safety Bands, VHF through 870 MHz.
- Scalable to meet system performance requirements for Frequency, Bandwidth, VSWR, Gain
- Upgrades/Interchangeability -
Accommodates user/installer preference for 1/4 wave, 1/2 wave, Dual Element Collinear and GPI antennas without compromising required system gain.
Price: $222.00
Dealers - CALL for reseller pricing: 1-800-654-9550
Technical Specifications
Electrical
- Frequency Band (VHF): 100-180 MHz
- Frequency Band (UHF): 380-870 MHz
- VSWR (all ports): ≤1.6:1
- Impedance: 50 Ohms
- Isolation (VHF-UHF-870) ≥50 dB
- Insertion Loss:
≤0.2 dB (100-180 MHz)
≤0.3 dB (380-520 MHz)
≤0.5 dB (746-870 MHz) - Power Rating:
150W (100-180 MHz)
100W (380-520 MHz)
75W (746-870 MHz) - Polarization: Linear, Vertical
- E-Plane: 35 Degrees, Nominal
- H-Plane: Omnidirectional
Mechanical
- Dimensions (Duplexer): 3.27 x 2.1 x 1.1 in. (83 x 53 x 28mm)
- Connectors (All): Type N
- Feed/NMO Cable Length: 17 ft. (5.1m) each
- Duplexer Mounting: Interior Only, #8 PHMS (2 ea. sold separately)
- Antenna Mounting: 3/4 in. Thru-Hole NMO Mounts
- Antenna Height /Type: Frequency Adjustable/Field Tunable 1/4 Wave
- Operating Temperature: -40° to 85° C
Antenna Upgrades sold separately
